As an engineer, you solve complex problems within a world of constraints. You optimize for performance, memory usage, and processing power. When it comes to the user interface (UI) of an IoT or embedded device, the same engineering mindset applies. Designing a UI for a physical product isn’t about decoration; it’s about creating a functional, efficient, and intuitive experience that works in harmony with the hardware.
Too often, UI design principles for websites or mobile apps are incorrectly applied to embedded systems, leading to clunky, unresponsive, and frustrating products. At Cardinal Peak, our UI engineering services are built on the philosophy that the best interfaces for connected devices are born from a deep respect for the hardware. This guide outlines the essential design principles for creating effective UIs in the demanding world of IoT.
Contents
Embrace the Constraints
Unlike a web browser on a powerful laptop, an embedded device has finite resources. The screen may be small, the processor modest, and the memory limited. Great IoT design doesn’t fight these constraints; it embraces them. If you’re looking to optimize an existing product, a UX audit can help you identify opportunities to simplify ruthlessly.
- Simplify Ruthlessly: Every visual element, every animation, and every font consumes resources. The goal is to achieve maximum clarity with minimum overhead. This means prioritizing essential information and removing anything that doesn’t directly serve a user’s goal.
- Optimize for the Display: Whether it’s a small OLED screen or a low-power e-ink display, the UI must be tailored to the specific technology. This includes considering pixel density, color depth, and refresh rates to ensure the interface is crisp and legible.
Prioritize Performance and Responsiveness
In the world of embedded systems, performance is a critical part of the user experience. An interface that feels slow or laggy will be perceived as broken, no matter how beautiful it is.
When providing user interface consulting for IoT, we emphasize that responsiveness is paramount. When a user presses a button, there must be immediate feedback—a sound, a haptic buzz, or an instantaneous visual change. This feedback assures the user their action was registered and builds trust in the device. This requires a tight integration between the UI design and the underlying firmware, ensuring the system can respond to input without delay.

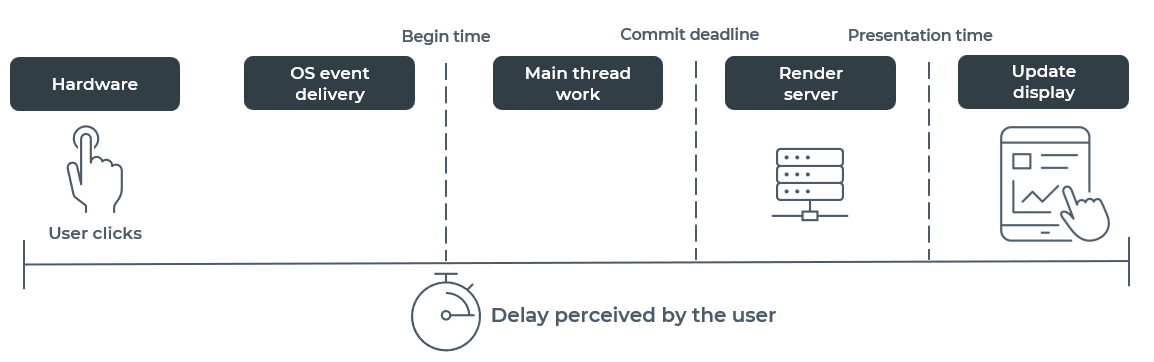

An intuitive UI is a responsive one. As the figure illustrates, reducing the delay perceived by the user requires optimizing every step of the feedback loop.
The Timeline of Perceived UI Delay
Design for Context and Environment
An embedded device doesn’t live in a browser tab; it lives in the real world. A great UI must account for the context in which the product will be used.
- Environmental Factors: Will the device be used outdoors in bright sunlight? In a dimly lit factory? By an operator wearing gloves? These factors dictate choices around screen brightness, contrast, color palettes, and the size of touch targets.
- Cognitive Load: The user might be operating machinery, monitoring a patient, or driving. The UI for these devices must be instantly scannable and minimize cognitive load. At Cardinal Peak, our UI UX design agency specializes in creating interfaces that present critical information clearly and concisely, allowing users to make quick, informed decisions.
Ensure a Seamless Hardware-Software Interaction
The most memorable product experiences are those where the hardware and software feel like a single, cohesive unit. The physical buttons, dials, and industrial design of a device are as much a part of the UI as the pixels on the screen.
Effective user interface design services for connected products require a holistic approach. The on-screen UI should complement the physical interactions. For example, turning a physical dial should correspond to a smooth, intuitive change on the display. This seamless integration is only possible when the industrial design, electrical engineering, and UI design teams work in close collaboration from the very beginning.
Conclusion: A Different Breed of UI Design
Creating a world-class UI for an IoT or embedded product requires a different mindset. It’s a discipline that rewards efficiency, respects hardware limitations, and demands a deep integration between design and engineering. By focusing on these core principles, you can create interfaces that are not only functional and responsive but also truly intuitive for the end-user.
